Absolute 1.7 ST
$879.99
DESCRIPTION
Known for versatility, the Absolute's geometry strikes a balance between speed and comfort, making it ideal for the fitness-minded rider, or the urbanite looking to ride to work or run errands.
SHIPPING AND RETURNS
Technical Specifications
Sizes
S (15"), M (17"), L (19")
Color(s)
Silver
Frame
Fuji A2-SL custom butted alloy
Fork
Fuji A1 alloy
Crankset
Shimano Altus, 46/30T
Bottom Bracket
Shimano sealed cartridge bearing
Pedals
Resin platform
Front Derailleur
Shimano Acera
Rear Derailleur
Shimano Alivio shadow
Shifters
Shimano Altus, 2 x 9-speed
Cassette
Shimano Acera, 11-36T
Chain
KMC X9
Wheelset
Alex double wall rims 32h, stainless spokes
Tires
Kenda Tendril, 700 x 38c, K-shield flat protection
Brakeset
Tektro HD-275, hydraulic disc, 160mm rotors
Brake Levers
Tektro HD-275, hydraulic disc
Headset
1-1/8" semi-integrated
Handlebar
Alloy, 18mm rise, 6 degree backsweep
Stem
3D-forged alloy, 17 degree, 31.8mm
Grips
Velo comfort sport
Saddle
Selle Royal Vivo Ergo
Seatpost
Alloy, 27.2mm
Weight
12.13kg / 26.74lbs

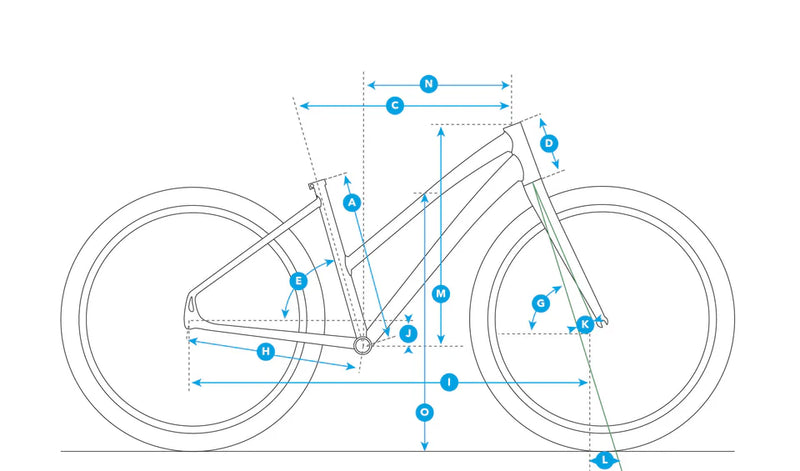

Geometry
| Size | S | M | L | |
| Bike Size | 15" | 17" | 19" | |
| A | Seat Tube, Center To Top | 381 | 432 | 483 |
| C | Top Tube, Effective | 519 | 539 | 555 |
| D | Head Tube Length | 135 | 150 | 170 |
| E | Seat Tube Angle | 75° | 74° | 73° |
| G | Head Tube Angle | 69° | 70° | 71° |
| H | Chainstay Length | 448 | 448 | 448 |
| I | Wheelbase | 1050 | 1052 | 1048 |
| J | Bottom Bracket Drop | 60 | 60 | 60 |
| K | Fork Offset | 45 | 45 | 45 |
| M | Stack | 541 | 560 | 583 |
| N | Reach | 374 | 378 | 378 |
| O | Standover | 670 | 681 | 681 |
| Stem | 80 | 80 | 100 | |
| Handlebar Width | 620 | 620 | 680 | |
| Crank | 170 | 170 | 170 | |
| Wheel Size | 700c | 700c | 700c | |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 |
