Nevada 27.5 1.7 SRAM

Nevada 27.5 1.7 SRAM

XS(13") / Satin Gray
$749.99
Skip to product information
1/3
Nevada 27.5 1.7 SRAM
1/3
Nevada 27.5 1.7 SRAM
Nevada 27.5 1.7 SRAM

Nevada 27.5 1.7 SRAM

$749.99
Size
Color:Satin Gray
DESCRIPTION

A staple in the Fuji mountain-bike lineup, available in 29" or 27.5" wheel sizes, the Nevada combines a tried and true hardtail frame and solid components to take your off-road adventures to the next level.
SHIPPING AND RETURNS

SHIPPING

All non-bike items and a limited number of bike models have the option to ship to home. All other bikes ordered online will be delivered to your chosen local authorized Fuji dealer.

SHIP TO HOME RETURNS

Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.

*More Details

SHIP TO STORE RETURNS

Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.

*More Details
Technical Specifications
Sizes
XS, S, M, L
Color(s)
Satin Gray, Cyan
Frame
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
Fork
SR Suntour SF19-XCT30-HLO-DS-27.5, hydraulic lockout, 100mm
Crankset
Prowheel, 42/34/24T
Bottom Bracket
Sealed cartridge bearing
Pedals
Resin platform
Front Derailleur
Microshift FD-M20
Rear Derailleur
SRAM X4
Shifters
SRAM X4, 3 x 8-speed
Cassette
Sunrace CSM66, 11-34T
Chain
KMC HV700
Wheelset
WTB SX19 rims 32H, Formula DC-20 front, DC-22 rear hubs, black spokes
Tires
WTB Ranger Comp, 27.5" x 2.25", 27tpi
Brakeset
Tektro HD-M275, 180/160mm rotors
Brake Levers
Tektro HD-M275
Headset
1 1/8" sealed bearings
Handlebar
Fuji riser bar, alloy, 15mm rise, 710mm
Stem
Fuji, forged aluminum, +/-6 degree
Grips
Fuji Performance Grip
Saddle
Fuji Performance Saddle
Seatpost
Fuji, alloy, 30.9mm
Weight
14.65 kg / 32.28 lbs

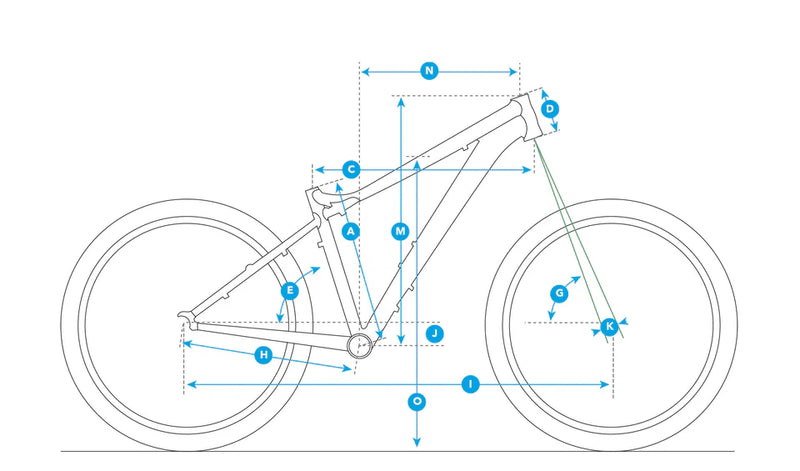

Geometry
Size XSSML
Bike Size 13"15"17"19"
A Seat Tube, Center To Top 310370420470
C Top Tube, Effective 562581601629
D Head Tube Length 95100110120
E Seat Tube Angle 73°73°73°73°
G Head Tube Angle 69.5°69.5°69.5°69.5°
H Chainstay Length 440440440440
I Wheelbase 1068.5108711091137
J Bottom Bracket Drop 45454545
K Fork Offset 42424242
M Stack 596600610619
N Reach 380397415440
O Standover 737767795823
Stem 40454545
Handlebar Width 710710710710
Crank 170170175175
Wheel Size 27.5"27.5"27.5"27.5"
Seat Post Diameter 30.930.930.930.9
Geometry
