Nevada 29 1.9

Nevada 29 1.9

S(15") / Satin Graphite
$649.99
Skip to product information
1/6
Nevada 29 1.9
1/6
Nevada 29 1.9
Nevada 29 1.9

Nevada 29 1.9

$649.99
Size
Color:Satin Graphite
DESCRIPTION

A staple in the Fuji mountain-bike lineup, available in 29" or 27.5" wheel sizes, the Nevada combines a tried and true hardtail frame and solid components to take your off-road adventures to the next level.
SHIPPING AND RETURNS

SHIPPING

All non-bike items and a limited number of bike models have the option to ship to home. All other bikes ordered online will be delivered to your chosen local authorized Fuji dealer.

SHIP TO HOME RETURNS

Item(s) in new, unassembled, unused condition and with all original packaging, hangtags, and parts will be eligible for a refund when returned within 30 days of purchase. Return shipping fees apply.

*More Details

SHIP TO STORE RETURNS

Bicycles can be returned at time of pick-up only. After leaving the store with your assembled bicycle the sale is final. It’s up to the seller you purchased from to initiate the return. Restocking fee may apply.

*More Details
Technical Specifications
Sizes
S, M, L, XL, XXL
Color(s)
Satin Graphite, Dark Teal
Frame
Fuji A2-SL custom-butted alloy front triangle, Fuji A1-SL alloy rear triangle
Fork
SR Suntour SF19-XCE 29, 100mm
Crankset
Prowheel, 42/34/24T
Bottom Bracket
Sealed cartridge bearing
Pedals
Resin platform
Front Derailleur
Shimano Tourney or microSHIFT Mezzo
Rear Derailleur
Shimano Tourney or microSHIFT M21
Shifters
Shimano EF41, EZ Fire or microSHIFT, 3 x 7-speed
Cassette
Shimano TZ500 freewheel or Falcon FW-710, 14-34T
Chain
KMC HV500
Wheelset
WTB SX19 rims 32H, Formula DC-20 front, DC-31 rear disc hubs, black spokes
Tires
WTB Ranger Comp, 29" x 2.25", 27tpi
Brakeset
Tektro M280, mechanical disc, 160mm rotors
Brake Levers
Tektro RS360A
Headset
1 1/8" sealed bearings
Handlebar
Fuji flat bar, alloy, 710mm
Stem
Fuji, forged aluminum, +/-6 degree
Grips
Fuji Performance Grip
Saddle
Fuji Performance Saddle
Seatpost
Fuji, alloy, 30.9mm
Weight
15.11 kg / 33.31 lbs

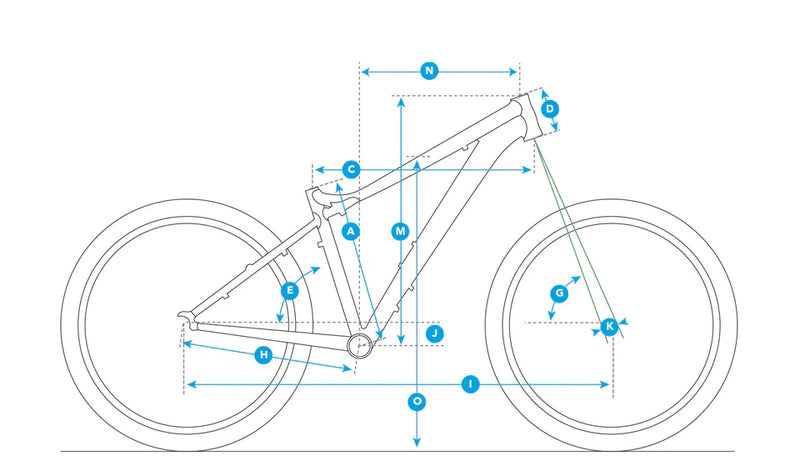

Geometry
Size SMLXLXXL
Bike Size 15"17"19"21"23"
A Seat Tube, Center To Top 370420470520560
C Top Tube, Effective 591611636653672
D Head Tube Length 95105110120130
E Seat Tube Angle 73°73°73°73°73°
G Head Tube Angle 69°69°69°69°69°
H Chainstay Length 450450450450450
I Wheelbase 1113.5113411601177.51197
J Bottom Bracket Drop 5555555555
K Fork Offset 4646464646
M Stack 611.5621625.5635644
N Reach 404421445459475
O Standover 781809834.5862886
Stem 4545456060
Handlebar Width 710710710710710
Crank 170175175175175
Wheel Size 29"29"29"29"29"
Seat Post Diameter 30.930.930.930.930.9
Geometry
