SL-A 1.3
$1,999.99
DESCRIPTION
Whether battling at a local crit, logging training miles or joining the weekend group ride the SL-A, with its high quality and lightweight aluminum frame, will have you dancing on the pedals all day.
SHIPPING AND RETURNS
Technical Specifications
Sizes
XS (47cm), S (51cm), M (54cm), L (56cm), XL (58cm), XXL (61cm)
Color(s)
Metallic Red
Frame
A6-SL super-butted 6066 aluminum
Fork
C10 carbon monocoque fork
Crankset
FSA Gossamer Pro, 52/36T
Bottom Bracket
FSA T47 24mm 85.5
Front Derailleur
Shimano 105
Rear Derailleur
Shimano 105
Shifters
Shimano 105, 2 x 11 speed
Cassette
Shimano 105, 11-34T
Chain
KMC X11
Wheelset
Oval Concepts 324, 24/28H
Tires
Vittoria Zaffiro Pro V, G2.0, 700 x 28c
Brakeset
Shimano 105, hydraulic disc, 160mm rotors
Brake Levers
Shimano 105, hydraulic disc
Headset
FSA SRS 1.5"
Handlebar
Fuji Ergo, 6061 alloy, 31.8mm clamp
Stem
Fuji 3D-forged 6061, +/-6 degree
Saddle
Selle Italia X Base
Seatpost
Oval Concepts 300, 6061 alloy, 27.2mm
Weight
9.88 kg / 21.78 lbs

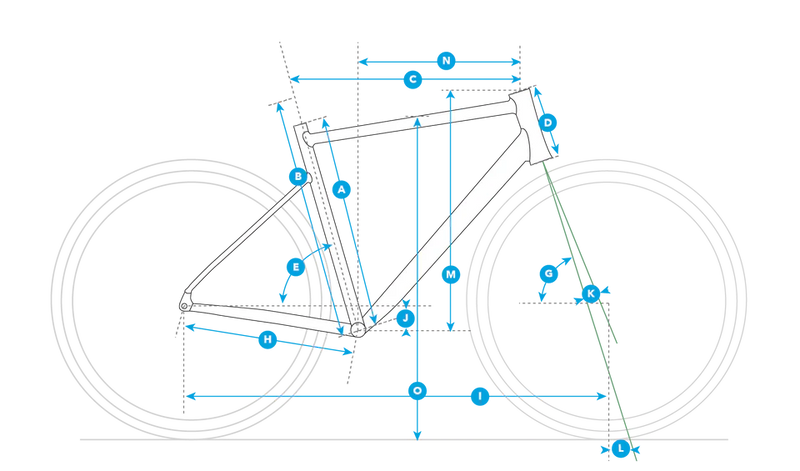

Geometry
| Size | XS(47cm) | S(51cm) | M(54cm) | L(56cm) | XL(58cm) | XXL(61cm) | |
| A | Seat Tube, Center To Top | 420 | 450 | 500 | 520 | 540 | 570 |
| C | Top Tube, Effective | 505 | 525 | 540 | 560 | 585 | 600 |
| D | Head Tube Length | 110 | 125 | 145 | 175 | 200 | 220 |
| E | Seat Tube Angle | 75° | 74° | 74° | 74° | 73° | 73° |
| G | Head Tube Angle | 71° | 71.5° | 72.5° | 72.5° | 72.5° | 73° |
| H | Chainstay Length | 415 | 415 | 415 | 415 | 415 | 415 |
| I | Wheelbase | 979 | 988 | 988 | 1005 | 1025 | 1035 |
| J | Bottom Bracket Drop | 76 | 74 | 74 | 72 | 72 | 70 |
| K | Fork Offset | 52 | 52 | 45 | 45 | 45 | 45 |
| M | Stack | 515 | 530 | 555 | 580 | 605 | 625 |
| N | Reach | 365 | 372.5 | 380 | 390 | 400 | 415 |
| O | Standover | 710 | 740 | 770 | 795 | 815 | 845 |
| Stem | 80 | 90 | 100 | 100 | 120 | 120 | |
| Handlebar Width | 400 | 420 | 420 | 420 | 440 | 440 | |
| Crank | 165 | 170 | 170 | 172.5 | 172.5 | 175 | |
| Wheel Size | 700 | 700 | 700 | 700 | 700 | 700 | |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
